Model	FD 56	FD 115	FD 260	FD 720
Interior volume	60 L	116 L	259 L	741 L
Convection type	Forced convection	Forced convection	Forced convection	Forced convection
Temperature range	+10 °C above ambient temperature to 300 °C	+10 °C above ambient temperature to 300 °C	+10 °C above ambient temperature to 300 °C	+12 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C	1.7 ± K	1.7 ± K	1.9 ± K	2.5 ± K
Temperature fluctuation at 150°C	0.3 ± K	0.3 ± K	0.4 ± K	0.6 ± K
Heating up time to 150°C	15 min	18 min	19 min	25 min
Recovery time after door was opened for 30 s at 150°C	4 min	4 min	5 min	6 min
Air change rate at 100°C	80 x/h	32 x/h	9 x/h	5 x/h
Permitted load	70 kg	150 kg	270 kg	315 kg
Load per rack	30 kg	30 kg	40 kg	45 kg
Net weight of the unit (empty)	41 kg	57 kg	84 kg	162 kg
Width net	560 mm	710 mm	810 mm	1165 mm
Height net	625 mm	735 mm	940 mm	1590 mm
Depth net	565 mm	605 mm	825 mm	870 mm
Width gross including packing	640 mm	790 mm	900 mm	1250 mm
Height gross including packing	840 mm	950 mm	1170 mm	1820 mm
Depth gross inclusive packing	790 mm	720 mm	885 mm	950 mm
inner space width	400 mm	550 mm	650 mm	1000 mm
inner space height	440 mm	550 mm	780 mm	1300 mm
inner space deep	345 mm	385 mm	515 mm	570 mm
Wall clearance back	160 mm	160 mm	160 mm	160 mm
Wall clearance sidewise	100 mm	100 mm	100 mm	100 mm
Power frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Nominal power	1,1 kW	1,3 kW	2,3 kW	4,5 kW
Unit fuse	6,3 A	6,3 A	12,5 A	16 A
Phase (Nominal voltage)	1~	1~	1~	3~
Energy consumption at 100°C	180 Wh/h	215 Wh/h	245 Wh/h	480 Wh/h
Energy consumption at 150°C	290 Wh/h	340 Wh/h	410 Wh/h	800 Wh/h
Sound-pressure level	43 dB(A)	43 dB(A)	43 dB(A)	43 dB(A)
Humidity	no	no	no	no
Time functions	One	One	One	One
Interfaces	USB	USB	USB	USB
Data recording	APT-COM Software \|\| USB	APT-COM Software \|\| USB	APT-COM Software \|\| USB	APT-COM Software \|\| USB
Fixtures	2/4	2/5	2/8	2/16

Operating Manuals	Quick Start Guide BD \| BF \| ED \| FD \| FED series	*Download*
Operating Manuals	BD \| BF \| ED \| FD \| FED series Avantgarde.Line Models 56 \| 115 \| 260 \| 720	*Download*
Case Studies	Drying and heating chambers (ED \| FD series) – Testing the functionality and service life of cables U. I. Lapp GmbH	*Download*
Case Studies	Drying and heating chambers (FD series) – From toothbrushes to tool handles and seals in vehicles KRAIBURG TPE GmbH & Co. KG	*Download*
Case Studies	Drying and heating chambers (FD series) – Cocoa beans hitting the spot Seguine Cacao Cocoa & Chocolate Advisors	*Download*
Case Studies	Drying and heating chambers (FP series) – Drying chambers, constant climate chambers, dynamic climate chambers and cooling incubators test the service life of MinebeaMitsumi spindle motors MinebeaMitsumi Technology Center Europe GmbH	*Download*
Brochures	Drying and heating chambers E \| ED \| ED-S \| FD \| FD-S \| FED \| FP \| M series	*Download*
Data Sheet	FD 720	*Download*
Data Sheet	FD 260	*Download*
Data Sheet	FD 115	*Download*
Data Sheet	FD 56	*Download*

열풍 건조기

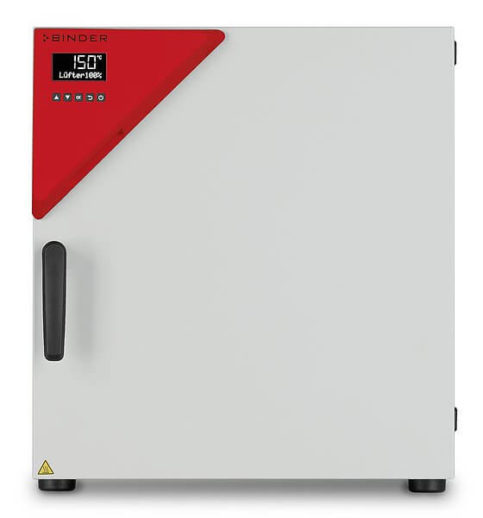

BINDER 강제 순환식 열풍 건조기, FD 시리즈
